5.5 warble

return to menu

112
  1. 1SHIFT + T3
  2. 2blue

5.5.1 warble introduction

type: chorus, vibrato and tape warble · by maiko

A wobbling delay: chorus at half mix, vibrato at full mix, and at a slow rate and a small depth the wow and flutter of an old tape machine. Its wobble never quite repeats, like a real tape transport.

The screen is a cassette: the hubs turn with the wobble, and the pulled-out tape waves with the depth and rate.

New effects are in the effects list: SHIFT + T3. They work on synths, on drums and as the master effect (MIXER, T3, then SHIFT + T3). The list also has FILTER, TE's own filter effect, which the stock firmware hides.

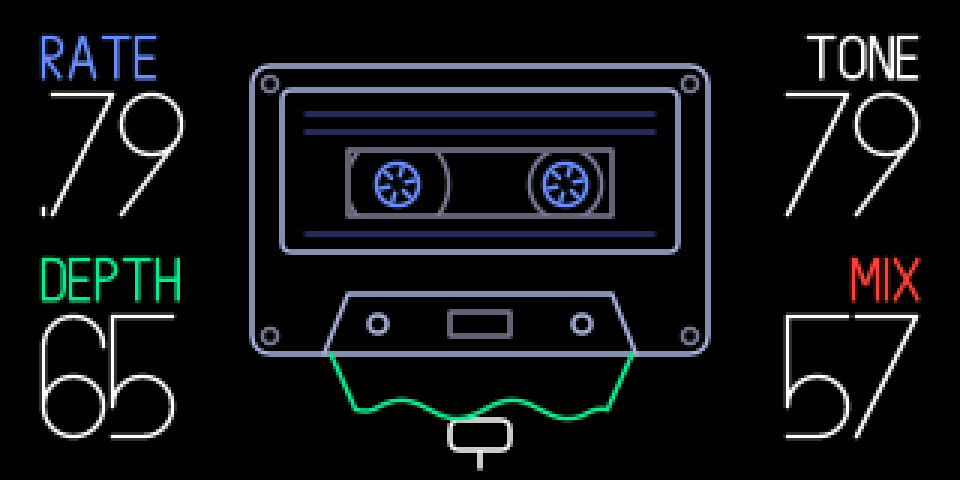

The warble screen: a cassette with its tape pulled out in a wave, RATE, DEPTH, TONE and MIX around it
warble

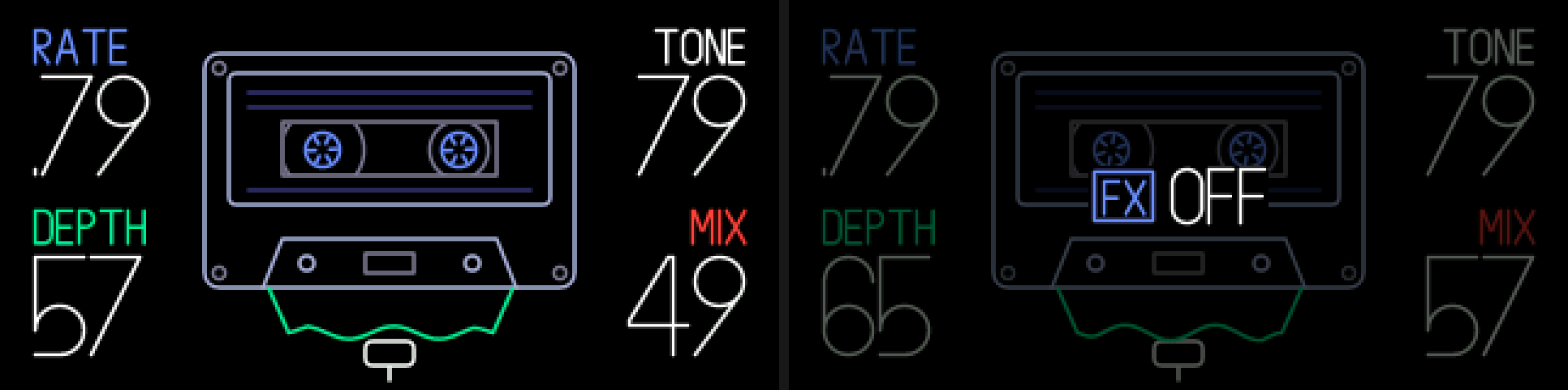

The warble screen, then the same screen dimmed with FX OFF
on, and switched off with T3

5.5.2 opening warble

+

step 1

SHIFT + T3

step 2

blue

SHIFT + T3, then turn blue to WARBLE.

5.5.3 knobs

turn

blue

rate: 0.05 to 10 hz

green

depth: 0 to 9 ms of swing

white

tone: dark (about 0.7 khz) to open

orange

mix: dry, chorus (middle), vibrato (full)

5.5.4 tips

  • For tape warble: rate about 0.5 to 1 hz, depth 10 to 15, mix 99.
  • As the master effect it's a stereo chorus: the right side wobbles a quarter turn ahead of the left.
  • Works on a synth, a drum kit and as the master effect (MIXER, T3, then SHIFT + T3).
  • On a synth or drum it comes back switched off after a power cycle: press T3 to switch it on. Switched off, the screen dims and shows FX OFF.
  • Saved as TE's filter, so a sound or master that uses it still loads on stock firmware (or op1r alone): there it is TE's filter with the same knob positions.
